Root® Connectivity Platform
SKU: 9515
Root® Connectivity Platform

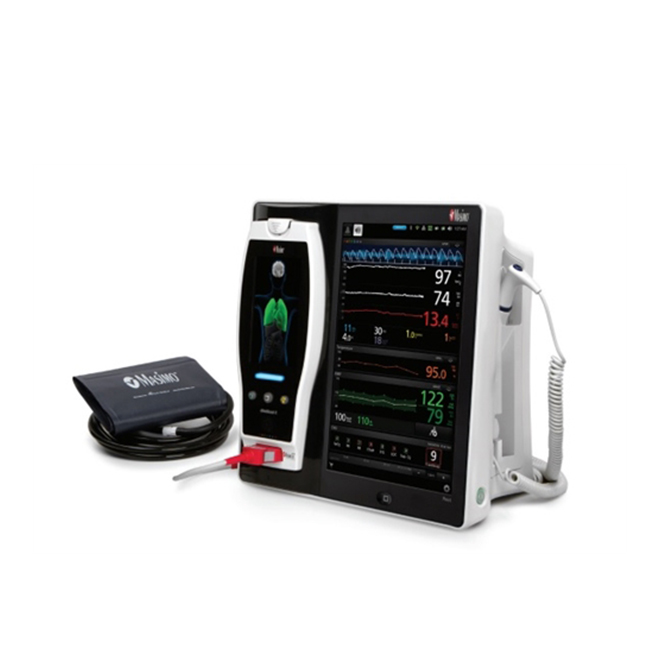

Root is a powerful new patient monitoring and connectivity platform that integrates our breakthrough rainbow® and SET® measurements with multiple additional parameters in an integrated, clinician-centric platform.
With a dock for the Radical-7 handheld monitor, an instantly interpretable display, and multiple networking/connectivity options, Root integrates multiple streams of data and simplifies patient care workflows, empowering caregivers to help make quicker patient assessments, earlier interventions, and better clinical decisions throughout the continuum of care.
Root can calculate an EWS (Early Warning Score) which can be customized to the hospitals EWS protocol
Masimo Rainbow & SET technology

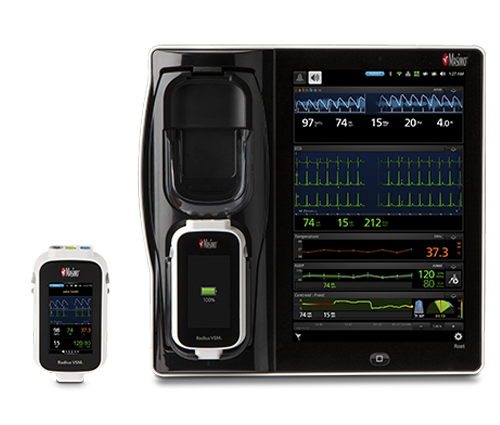

Can be docked with Radical-7 or Radius-7
Intuitive, touchscreen navigation
Adjustable display of parameters, waveforms, and viewing configuration
Customizable Patient Monitoring and Connectivity
With Radical-7 can be configured with:

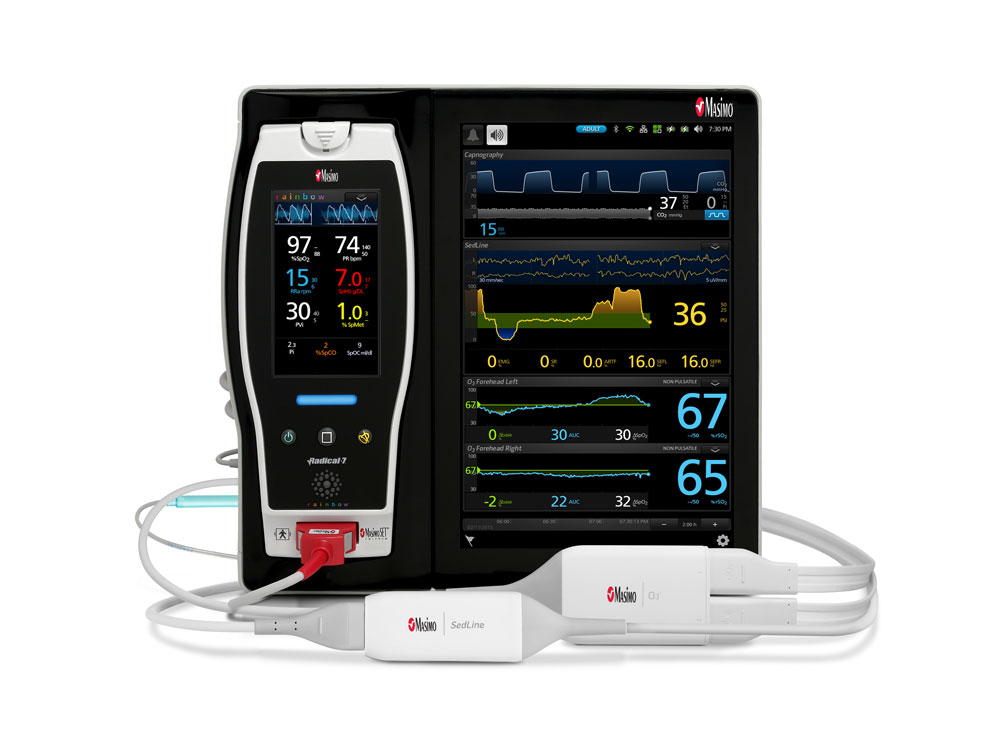

SedLine® brain function monitoring
Nomoline™ sidestream capnography.
Third-party measurement expansion
Built-in connectivity gateway for standalone devices such as IV pumps, ventilators, beds, and other patient monitors
Root Options
Code | Root Options |
|---|---|
9695 | ROOT Vital Signs Monitor with NIBP and Temp. For use with Radical-7, Radius-7 and MOC-9 modules. Integrated Blood Pressure Module & Integrated Temperature Module. Comes with male probe |
9515 | Root Monitor. For use with Radical-7, Radius-7® and MOC-9™ modules. Touchscreen Size: 10.1 in (25.65 cm). Provides Ethernet connection, nurse call connector, USB 2.0 Ports, MOC-9 ports, and Iris® Connectivity Ports. Comes with NZ/AUST power cords. |
Root Options
Code | Accessories |
|---|---|
19616 | Root Mounting Plate |
300054 | Root Quick-Connect Kit Includes mounting plate for Root and quick-connect plate for roll stand |

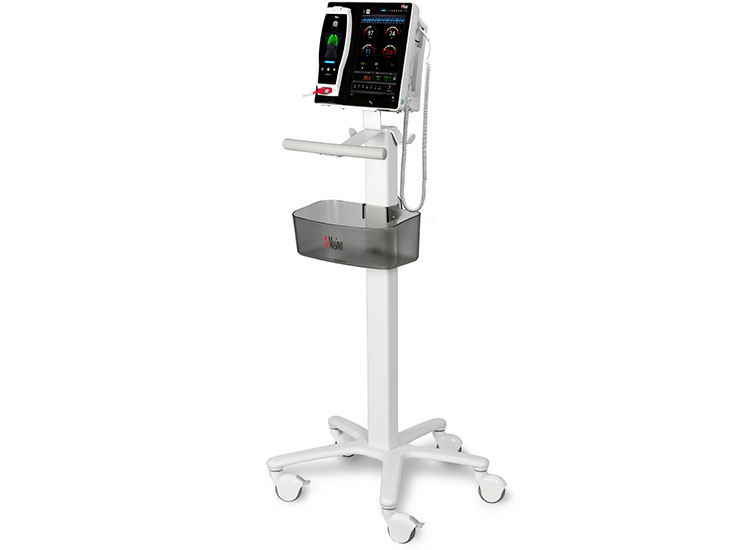

300238 | Root™ Roll Stand with Quick Connect |
4563 | TIR-1 Mount Kit for Root |
See also: Sedline, Regional 03, ANI, NIBP Cuffs & NomoLine (Gas Monitoring) | |
